Product Description:

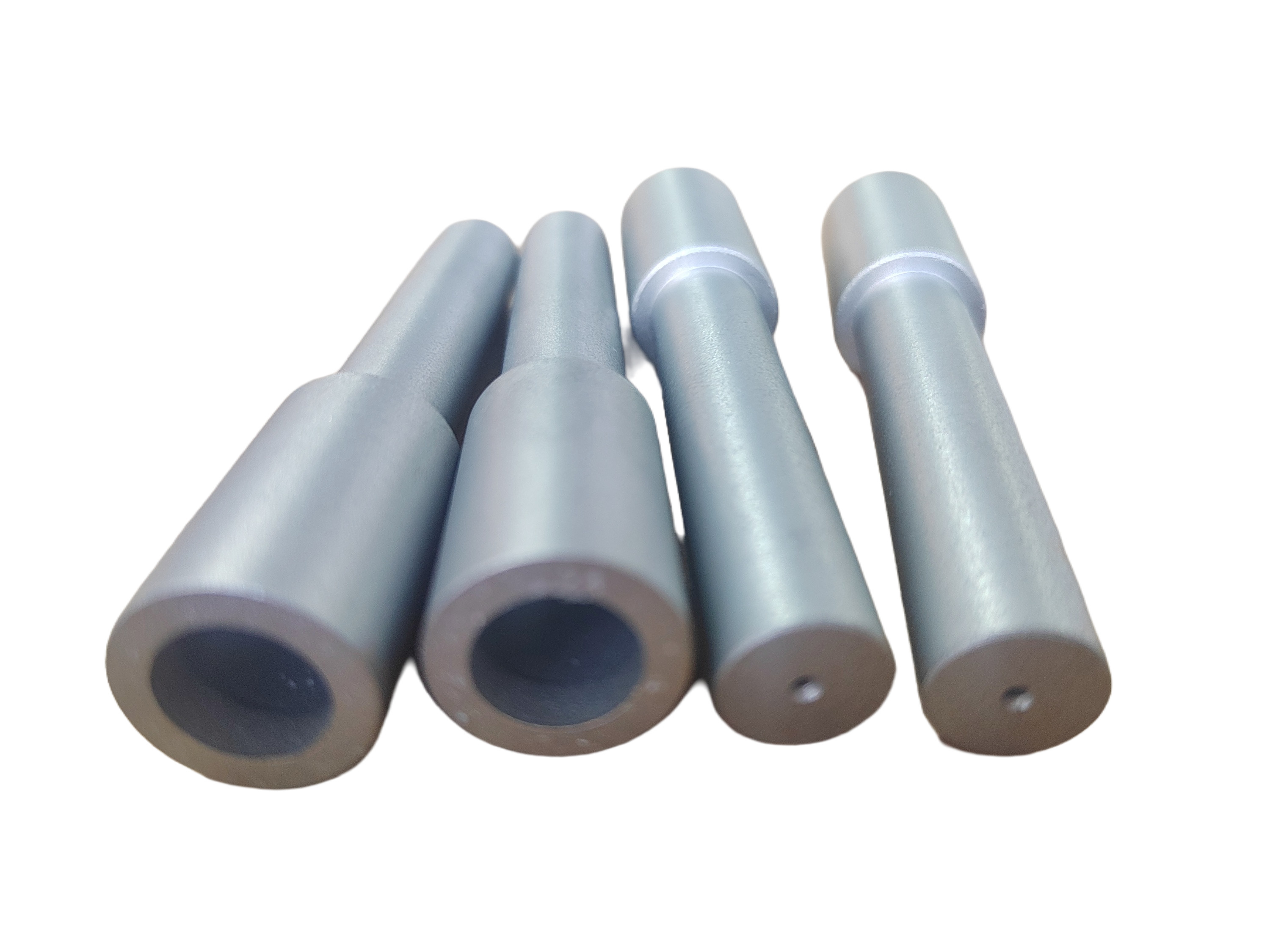

Our tungsten carbide rods with a large round hole are specifically engineered for manufacturing high-performance drill bits. Crafted from premium tungsten carbide, these rods offer exceptional durability, hardness, and precision, making them ideal for a wide range of drilling applications.
Key Features:
- High-Quality Tungsten Carbide: Made from top-grade tungsten carbide, these rods provide superior hardness and wear resistance, ensuring long-lasting performance in challenging drilling environments.
- Large Round Hole Design: The large round hole allows for easy integration with various drill bit designs, enhancing versatility and efficiency in machining operations.
- Precision Engineering: Each rod is manufactured to exact specifications, ensuring consistent performance and accuracy for precise drilling applications.
- Exceptional Wear Resistance: Designed to withstand abrasive conditions, these rods maintain their sharpness and effectiveness over extended use, minimizing the need for frequent tool replacements.
Features:
- Product Name: Carbide T Rod
- Tolerance: Customizable
- Length: Customizable
- Corrosion Resistance: High
- Shape: T-shaped
- Diameter: Customizable
- Material: Tungsten Carbide
- Tool Durability: High
Technical Parameters:
| Application |
Metal Cutting |
| Hardness |
Customizable |
| Length |
Customizable |
| Strength |
High |
| Diameter |
Customizable |
| Corrosion Resistance |
High |
| Durability |
Long-lasting |
| Resistance |
High Temperature And Wear |
| Manufacturer |
Customizable |
| Shape |
T-shaped |
| number |
WC
±0.5% |
CO
±0.5% |
um |
Densityg/cm3 |
HRA |
TRSN/mm2 |
Application |
| XA80 |
80 |
20 |
3-6 |
15.58 |
84.00 |
3000 |
Screw Die Nut Die Six-Piece Die |
| XA90 |
78 |
22 |
6-9 |
13.39 |
82.50 |
2800 |
Nut Die |
| XA95 |
75 |
25 |
6-9 |
13.12 |
81.50 |
2800 |
Impact-Resistant Forging Die Nut Die |
| XA65 |
82 |
18 |
2-6 |
13.73 |
85.50 |
3000 |
Fully Tungsten Single Hit |
| XC90 |
75 |
25 |
2-6 |
13.00 |
83.00 |
2800 |
Nut Die |
| XT60 |
80 |
20 |
3-6 |
13.40 |
86.00 |
3200 |
High Stress |
| XC75 |
75 |
25 |
2-6 |
13.00 |
83.80 |
3000 |
Impact-Resistant |
| XT6 |
85 |
15 |
3-6 |
13.80 |
86.20 |
3200 |
Stainless Steel Screw Die Stretching
Reducing Rod |
| XT7 |
80 |
20 |
3-6 |
13.38 |
84.80 |
2900 |
Stainless Steel Shaping |
| XT8 |
78 |
22 |
3-6 |
13.20 |
84.00 |
2900 |
Stainless Steel Screw Die |
| XT10 |
77 |
23 |
3-6 |
13.20 |
83.50 |
2900 |
Nut Cap Nut |
Applications:
The Carbide T Rod is a T-shaped tungsten carbide product that can be customized in terms of length, diameter, and tolerance. Our Carbide T Rod is known for its excellent machining precision due to its tungsten carbide material. The tungsten carbide material is known for its high hardness and wear resistance, making it ideal for various industrial applications.
Product Application Occasions:
- Manufacturing and processing industries
- Automotive industry
- Mechanical engineering
- Construction industry
- Metalworking industry
Product Scenarios:
- Used as a cutting tool for machining precision parts
- Used as a wear-resistant component in heavy machinery
- Used as a drilling tool in the construction industry
- Used as a part of molds for casting and forging
- Used as a part of metalworking tools for shaping and forming metals
Overall, the Carbide T Rod from xincheng is a versatile and reliable tungsten carbide product that can be customized to fit various industrial applications. With its excellent machining precision and wear resistance, it is a valuable addition to any industrial toolset. Contact us today to order your customized Carbide T Rod.
Customization:
Brand Name: xincheng
Model Number: CF12 CF25 CF812 CF312 CF608 CF406 CF506 CF412 CF09 XA80 XA90 XA95 XA65
Place of Origin: fujian
Minimum Order Quantity: 1kg
Supply Ability: 50 tons per month
Application: Metal Cutting
Resistance: High Temperature And Wear
Corrosion Resistance: High
Material: Carbide
Diameter: Customizable
Our Carbide T Rod offers High Strength, Machining Precision, and Wear Resistance to meet your metal cutting needs.
Support and Services:
The Carbide T Rod product is a high-quality cutting tool designed for use in various industrial applications. Our product technical support and services include:
- Expert advice on the selection and use of Carbide T Rods for specific machining applications
- Assistance with troubleshooting and problem-solving related to Carbide T Rods
- Customization of Carbide T Rods to meet specific customer requirements
- Training and education on the proper use and maintenance of Carbide T Rods
- Repair and reconditioning services for Carbide T Rods
- Regular maintenance and inspection services to ensure optimal performance and longevity of Carbide T Rods
Our team of experienced professionals is dedicated to providing the best possible support and service to our customers. Contact us today to learn more about how we can assist you with your Carbide T Rod needs.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is xincheng.
Q: What are the available model numbers for this product?
A: The available model numbers for this product are CF12, CF25, CF812, CF312, CF608, CF406, CF506, CF412, CF09, XA80, XA90, XA95, and XA65.
Q: Where is this product manufactured?
A: This product is manufactured in fujian.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1kg.
Q: What is the supply ability for this product?
A: The supply ability for this product is 50 tons per month.
