Customized Tungsten Carbide Raw Material for Cutting Drilling Grinding and Milling

Customized Tungsten Carbide Raw Material for Cutting Drilling Grinding and Milling
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Wear Resistance/High Hardness/High Strength/Corrosion Resistance/
Hardness: HRA 89-93
Application: Cutting/ Drilling/ Milling/ Grinding
Flexural Strength: 2800-4500MPa
Diameter: 2-50mm
Length: 50-330mm
Dimention: Customized
Density: 14.5-15.9 G/cm3
Highlight:

Drilling Tungsten Carbide Raw Material

,

Milling Tungsten Carbide Raw Material

,

Customized Tungsten Carbide Raw Material

Basic Infomation
Place of Origin: xiamen
Brand Name: xincheng
Payment & Shipping Terms
Supply Ability: 50 tons per month
Product Description

Product Description:

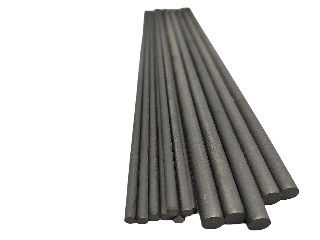

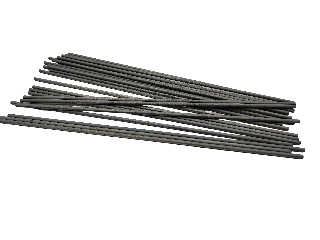

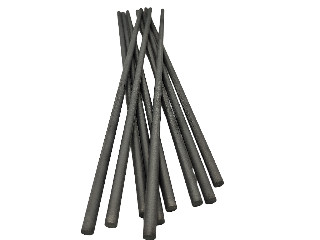

The Cemented Carbide Round Bar is a high-performance product specifically designed for industrial applications that demand exceptional wear resistance, high hardness, and superior strength. With a density range of 14.5-15.9 g/cm³, this carbide rod ensures outstanding durability and excellent performance, even under harsh working conditions.

Customized Tungsten Carbide Raw Material for Cutting Drilling Grinding and Milling 0

Key Features:

Superior Wear Resistance – Ideal for cutting tools, drill bits, milling cutters, grinding tools, and other wear-resistant components, significantly extending tool life and reducing replacement costs.
Ultra-High Hardness (HRA 89-93) – Maintains exceptional performance under high-load and high-speed machining conditions while ensuring precision.
High Strength (Flexural Strength: 2800-4500MPa) – Withstands extreme pressure and impact, providing stability and reliability in cutting, drilling, milling, and grinding operations.
Excellent Corrosion Resistance – Suitable for exposure to corrosive chemicals and harsh environments, ensuring long-lasting performance.

Xincheng (Xiamen) Cemented Carbide Co., Ltd.
number CO
±0.5%

um

Densityg/cm3

HRA

TRSN/mm2
Main purpose or application
CF12 12 0.7 14.20 91.80 4000 Cutting tools such as drills and reamers for steel and cast iron, as well as tungsten carbide punch rods.
CF503 3 0.8 15.00 93.00 3200
XG7 15 1 13.85 89.00 4100
CF312 12 0.5 14.15 92.60 4200
CF406 6 0.4 14.90 94.00 3200
CF506 5.5 0.5 14.90 93.00 3200
CF412 12.5 0.4 14.31 92.10 4300
CF25 12 0.4 14.10 92.10 4000
CF09 9 0.2 14.50 93.80 3800

Wide Range of Applications:

The Cemented Carbide Round Bar is widely used in industries such as metalworking, mold manufacturing, aerospace, automotive, woodworking, and high-precision machining. It is an essential material for precision cutting, heavy-duty machining, drilling, milling, and grinding operations.
