Tungsten Steel Screw Mold Blanks

Tungsten Steel Material Screw Mold Blanks

Basic Infomation

Place of Origin: Xiamen

Brand Name: Xincheng

Payment & Shipping Terms

Gallery

Tungsten Steel Material for Producing Screw Mold Blanks

Product Description

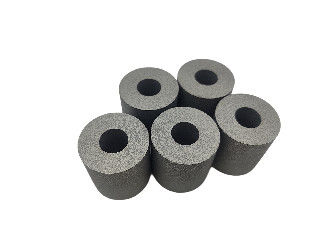

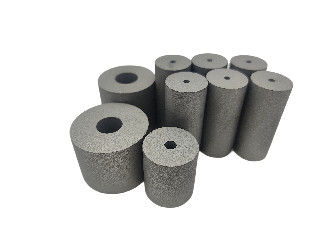

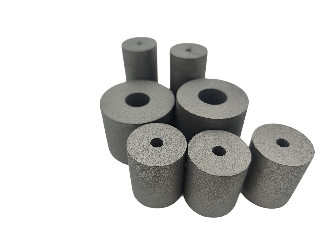

Tungsten Steel Material for Producing Screw Mold Blanks

Our premium tungsten steel is specifically engineered for creating screw mold blanks. This high-performance material offers exceptional hardness, wear resistance, and durability, making it ideal for precision screw mold production. The tungsten steel ensures consistent performance even under high-pressure cold heading and hot forging processes, providing the reliability required for high-volume, high-precision manufacturing.

Tungsten Steel Material for Producing Screw Mold Blanks 0

Xincheng (Xiamen) Cemented Carbide Co., Ltd.
number	WC ±0.5%	CO ±0.5%	um	Densityg/cm3	HRA	TRSN/mm2	Main purpose or application
number	WC ±0.5%	CO ±0.5%	um	Densityg/cm3	HRA	TRSN/mm2	Main purpose or application
XG2	94	6	2-3	14.98	90.50	3000	Stretching Rod Mould
XG3	92	8	2-3	14.61	89.30	3200
XG4	88	12	2-3	14.31	89.50	3450
XG5	88	12	2-3	14.30	88.00	3500	Wear-resistant and impact-resistant molds, etc. Examples include shear punches, strong rod dies for screw fastening, etc
XG6	86	14	2-3	14.12	87.00	3500
XG7	85	15	1	13.85	89.00	4100	Wear-resistant and impact-resistant molds, etc. Examples include shear punches, strong rod dies for screw fastening, etc
XA80	80	20	3-6	15.58	84.00	3000	Screw Die Nut Die Six-Piece Die
XA90	78	22	6-9	13.39	82.50	2800	Nut Die
XA95	75	25	6-9	13.12	81.50	2800	Impact-resistant forging dies, nut dies, etc.
XA65	82	18	2-6	13.73	85.50	3000	Full Tungsten Punch
XC90	75	25	2-6	13.00	83.00	2800	Cap Nut Die
XT60	80	20	3-6	13.40	86.00	3200	high stress
XC75	75	25	2-6	13.00	83.80	3000	impact-resistant
XT6	85	15	3-6	13.80	86.20	3200	Stainless Steel Screw Die Stretching and Reducing Rod
XT7	80	20	3-6	13.38	84.80	2900	Stainless Steel Shaping
XT8	78	22	3-6	13.20	84.00	2900	Stainless Steel Screw Die Stretching and Reducing Rod
XT10	77	23	3-6	13.20	83.50	2900	Nut and Cap Nut Die
FT60	86	14	3-9	13.97	84.80	2690	For Hot Extrusion Molds, Hot Forging Dies
FT70	84	16	3-9	13.45	83.50	2700
FT80	88	12	3-9	13.30	82.50	2500

Key Benefits:

Superior Hardness & Wear Resistance: Ensures long tool life and precise mold dimensions.
High Temperature Stability: Maintains performance during both cold heading and hot forging operations.
Consistent Dimensional Accuracy: Achieves tight tolerances for optimal screw mold quality.
Cost-Effective: Reduces maintenance and replacement costs due to extended service life.

Elevate your manufacturing with our high-quality tungsten steel material designed for producing durable and precise screw mold blanks.

This response combines key technical aspects while ensuring clarity for potential industrial applications.
